spring에서 mybatis 연동 완벽 작동! spring mybatis 연동 방법

by 디찌s 2023. 2. 2.
728x90
반응형

*도움이 되셨다면 광고 클릭 한번 부탁드립니다. (__)



1.pom.xml 에 종속 라이브러리 추가

		<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>2.0.7</version>
		</dependency>

		<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.5.6</version>
		</dependency>



2.root-context.xml (bean을 등록 하는곳)

*spring에서 @configuration 으로 등록하는 방법이 있지만, 여기서는 xml에서만 등록하는 법을 소개하겠다. 어차피 xml에서 bean을 등록하나 @configuration에서 bean을 등록하나 같은원리이므로..



2-1 일단 jdbc를 사용하기위한 datasource와 mybatis에서 제공하는 sqlSessionFactory를 bean으로 등록해준다.

mybatis는 *Mapper.xml 파일을 이용하여 쿼리문을 작성한다. (잠시후 소개할 Mapper interface에서 쿼리문을 작성할수도있음. 하지만 여기서 다루지는 않겠다.) 그래서 *Mapper.xml를 search하기위해 mapperLocations 속성을 주입해준다.



<!-- springframework의 DriverManagerDataSource를 이용하여 dataSource 설정 -->
	<bean id="doDataSource"
		class="org.springframework.jdbc.datasource.DriverManagerDataSource"
		p:driverClassName="org.postgresql.Driver"
		p:url="jdbc:postgresql://127.0.0.1:5432/vidb"
		p:username="root"
		p:password="root"
	/>

	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource" ref ="doDataSource"></property>
		<property name="mapperLocations" value="classpath:mapper/**/*Mapper.xml"></property>
	</bean>

2-1-1 *Mapper.xml 을 생성해준다. 필자는 mapper 폴더를 생성하고 그안에 *Mapper.xml 을 생성해주었다.



<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "https://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="kr.co.example.mapper.PolicyMapper">

    <select id="selectListCompany" parameterType="Map" resultType="HashMap">
        select
        company_code,company_name,company_ecode
        from
        company_list
        where 1=1
        <if test="searchKeyword != null and searchKeyword !=''">
            and
            (company_name ilike #{searchKeyword}
            or
            company_ecode ilike #{searchKeyword})
        </if>
        <if test="sort_field != null and sort_field != '' " >
            order by #{sort_field} #{sort_dir}
        </if>
        limit #{length}::int4 offset #{start}::int4
    </select>


</mapper>

policyMapper.xml







2-2 interface로 Mapper 생성 mapper.xml 과 연결될 mapper inteface이다. mapper.xml에 쿼리 id와 interface mapper method 명이 같아야한다.

예) mapper.xml select id="selectListCompany" , interface mapper method =" selectListCompany(Map<String,String> param)"





/**
 * \* Created with JIRANDATA.
 * \* @author: kim-dong-wan
 * \* Date: 2023/02/01
 * \* Time: 1:06 오후
 * \* Description:
 * \
 */

public interface PolicyMapper {
    List<Map<String,Object>> selectListCompany(Map<String,String> param);


}

poilicyMapper.java

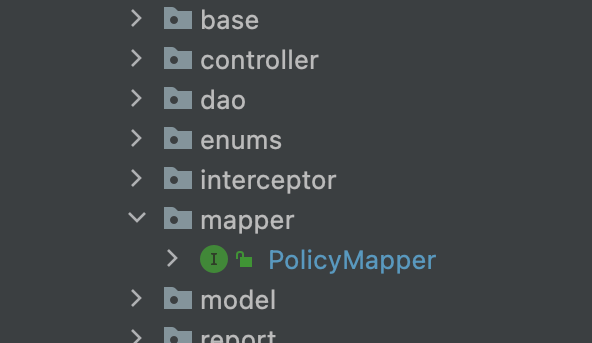

2-3 mapper interface를 bean으로 등록해주기 위한 component-scan 등록



  '  xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring"',

'http://mybatis.org/schema/mybatis-spring '

'http://mybatis.org/schema/mybatis-spring.xsd'



위 세개를 root-context.xml(main applicationContext.xml) 맨위에 xmlns 선언해주는곳에 넣어준다.

<beans xmlns="http://www.springframework.org/schema/beans"
	   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	   xmlns:context="http://www.springframework.org/schema/context"
	   xmlns:task="http://www.springframework.org/schema/task"
	   xmlns:aop="http://www.springframework.org/schema/aop" xmlns:util="http://www.springframework.org/schema/util"
	   xmlns:tx="http://www.springframework.org/schema/tx"
	   xmlns:mybatis="http://mybatis.org/schema/mybatis-spring"
	   xsi:schemaLocation="http://www.springframework.org/schema/beans
 						http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
						http://www.springframework.org/schema/context
						http://www.springframework.org/schema/context/spring-context-3.0.xsd
						http://www.springframework.org/schema/util
						http://www.springframework.org/schema/util/spring-util.xsd
						http://www.springframework.org/schema/tx
						http://www.springframework.org/schema/tx/spring-tx-3.0.xsd
						http://www.springframework.org/schema/aop
					    http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
					    http://www.springframework.org/schema/task
						http://www.springframework.org/schema/task/spring-task.xsd http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring.xsd">



2-4 mybais:scan을 통한 mapper scan (exmaple.mapper 패키지 안에있는 mapper종류들을 전부 bean으로 만들어준다.)



	<!-- scan mybatis mapper-->
	<mybatis:scan base-package="kr.co.example.mapper"/>





3.TEST



@RunWith(SpringJUnit4ClassRunner.class)
@WebAppConfiguration
@ContextConfiguration(locations="../resources/config/applicationContext.xml")
public class PolicyDAOImpTest {


    //PolicyMapper policyMapper;
    @Autowired
    private DataSource doDataSource;

    @Autowired
    private SqlSessionFactory sqlSessionFactory;

    @Autowired
    private PolicyMapper policyMapper;

    @Test
    public void testMybatis(){
        SqlSession session = sqlSessionFactory.openSession();
        try {
            Connection con = doDataSource.getConnection();

        } catch (SQLException e) {
            e.printStackTrace();
        }

    }

    @Test
    public void testPolicyMapper(){
        Map<String,String> param = new HashMap<String,String>();
        param.put("length","2");
        param.put("start","1");
        List<Map<String,Object>> rList = policyMapper.selectListCompany(param);
        assertNotEquals(rList.size(),0);
    }

}
